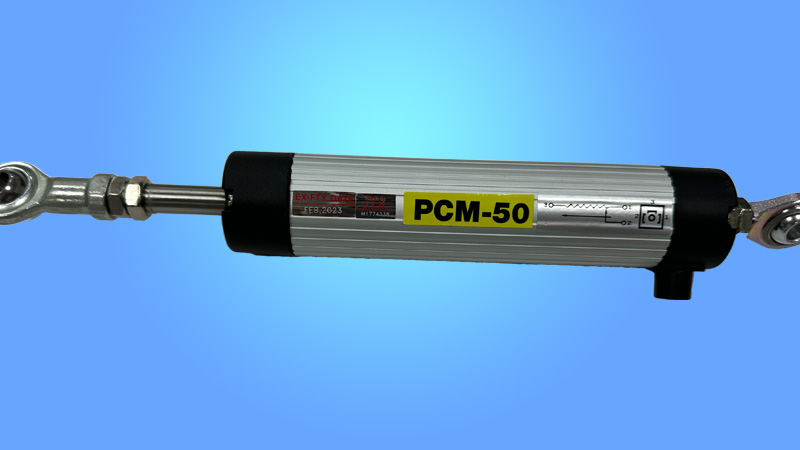

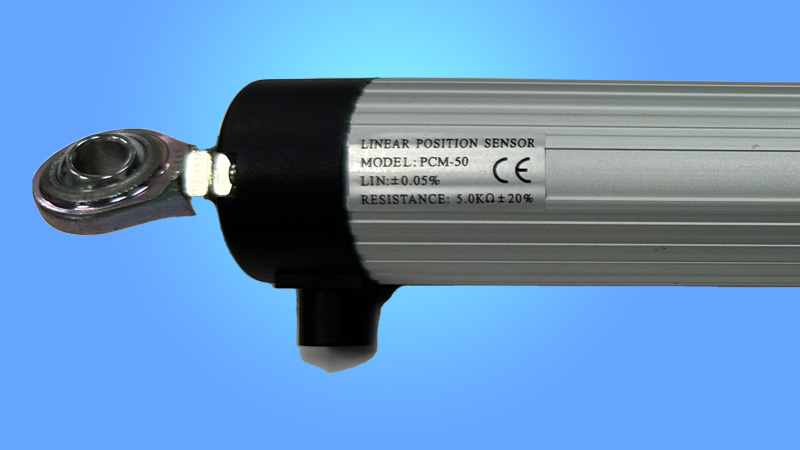

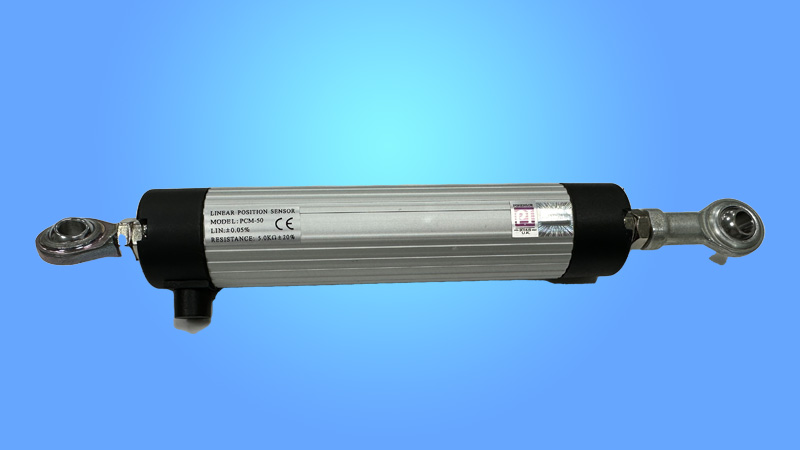

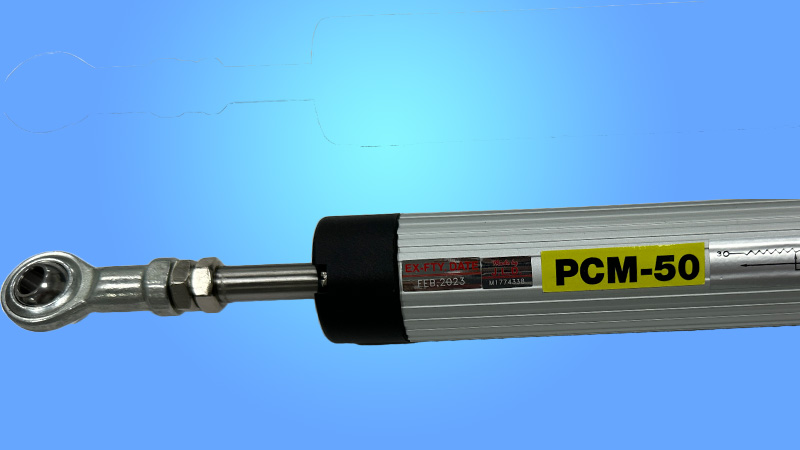

PCM Pulling Rod Type Linear Motion Position Sensors

PCM Pulling Rod Type Linear Motion Position Sensors

PCM Pulling Rod Type Linear Motion Position Sensors

PCM Pulling Rod Type Linear Motion Position Sensors

PCM Pulling Rod Type Linear Motion Position Sensors

The sensor is built for easy mounting by double built in connectors, enable a large angle of misalignment and without back-lashes.
A built- in connector system that is designed of reliability and safety contributes to excellent performance.
These series can be used in a wide range of applications in mechanical and vehicle engineering industries as well as in automation and robotics technologies, combining remarkable robustness with high accuracy.

Product Figures
- Anodized Aluminium Housing
- Twin-bearing actuating rod
- Smooth Low Noise Output from Conductive Plastic Track
- Very Long Life : 100 x 10^6 Cycles or 25 x 10^6 m
- Stroke : 50-900mm
- Outstanding Linearity : ±0.05%
- High Resolution : Infinite
- Excellent Repeatability: ±0.01mm
- Max operating speed：5m/s
- C193 4-PIN Connector
- Fuse Protected optional
- Operating temperature:-30~100 °C
- Storage Temperature:-50~120 °C

Product Technical Specifications
- Sealing - PCM: IP66
- Current Resistance: ≤ 10mA
- Wiper : ≤ 1mA
- Operating Force: ≤ 10N (PCM)
- Power Consumption: 3W-10W
- Output Smoothness :< ±0.1% against input voltage
- Input Voltage：60 V Max
- Insulation Voltage： 500V-1 min Residue < 5 µA
- Vibration：IEC 68-2-6:1982 10g
- Shock：IEC 68-2-29:1968 40g

Ordering Code

	Series	-	Length (mm)
	PCM
Example	PCM	-	50
Available Options	PCM	-	50-900

Product Detail


Product Code	PCM-50
Length (mm)	50
Total Electrical Travel (mm)	53
Active Electrical Travel (mm)	51
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	59
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	223
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-75
Length (mm)	75
Total Electrical Travel (mm)	78
Active Electrical Travel (mm)	76
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	84
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	248
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-110
Length (mm)	100
Total Electrical Travel (mm)	103
Active Electrical Travel (mm)	101
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	109
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	273
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-130
Length (mm)	130
Total Electrical Travel (mm)	133
Active Electrical Travel (mm)	131
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	139
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	303
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-150
Length (mm)	150
Total Electrical Travel (mm)	153
Active Electrical Travel (mm)	151
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	159
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	323
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-175
Length (mm)	175
Total Electrical Travel (mm)	178
Active Electrical Travel (mm)	176
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	184
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	348
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-200
Length (mm)	200
Total Electrical Travel (mm)	204
Active Electrical Travel (mm)	202
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	210
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	375
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-225
Length (mm)	225
Total Electrical Travel (mm)	229
Active Electrical Travel (mm)	227
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	235
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	400
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-250
Length (mm)	250
Total Electrical Travel (mm)	254
Active Electrical Travel (mm)	252
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	260
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	425
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-275
Length (mm)	275
Total Electrical Travel (mm)	279
Active Electrical Travel (mm)	277
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	285
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	450
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-300
Length (mm)	300
Total Electrical Travel (mm)	304
Active Electrical Travel (mm)	302
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	310
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	476
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-350
Length (mm)	350
Total Electrical Travel (mm)	354
Active Electrical Travel (mm)	352
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	360
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	541
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-375
Length (mm)	375
Total Electrical Travel (mm)	380
Active Electrical Travel (mm)	378
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	386
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	566
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-400
Length (mm)	400
Total Electrical Travel (mm)	406
Active Electrical Travel (mm)	404
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	412
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	591
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-425
Length (mm)	425
Total Electrical Travel (mm)	432
Active Electrical Travel (mm)	430
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	437
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	618
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-450
Length (mm)	450
Total Electrical Travel (mm)	457
Active Electrical Travel (mm)	455
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	463
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	666
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-500
Length (mm)	500
Total Electrical Travel (mm)	508
Active Electrical Travel (mm)	506
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	518
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	730
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-550
Length (mm)	550
Total Electrical Travel (mm)	558
Active Electrical Travel (mm)	556
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	568
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	780
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-600
Length (mm)	600
Total Electrical Travel (mm)	609
Active Electrical Travel (mm)	607
Resistance (kΩ)	5
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	619
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	856
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-650
Length (mm)	650
Total Electrical Travel (mm)	659
Active Electrical Travel (mm)	657
Resistance (kΩ)	10
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	669
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	906
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-700
Length (mm)	700
Total Electrical Travel (mm)	710
Active Electrical Travel (mm)	708
Resistance (kΩ)	10
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	720
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	956
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-750
Length (mm)	750
Total Electrical Travel (mm)	762
Active Electrical Travel (mm)	760
Resistance (kΩ)	10
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	772
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	1040
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-800
Length (mm)	800
Total Electrical Travel (mm)	812
Active Electrical Travel (mm)	810
Resistance (kΩ)	10
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	822
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	1111
Ingress Protection Grade	IP65
Accessories


Product Code	PCM-900
Length (mm)	900
Total Electrical Travel (mm)	914
Active Electrical Travel (mm)	912
Resistance (kΩ)	10
Independent Linearity (±%)	0.050
Mechanical Travel (M.T) (mm)	924
Resolution	Infinite
Recommended Cursor Current (µA)	< 1
Temperature Range (°C)	-30 °C to +100 °C
Dimension (mm)	1231
Ingress Protection Grade	IP65
Accessories
